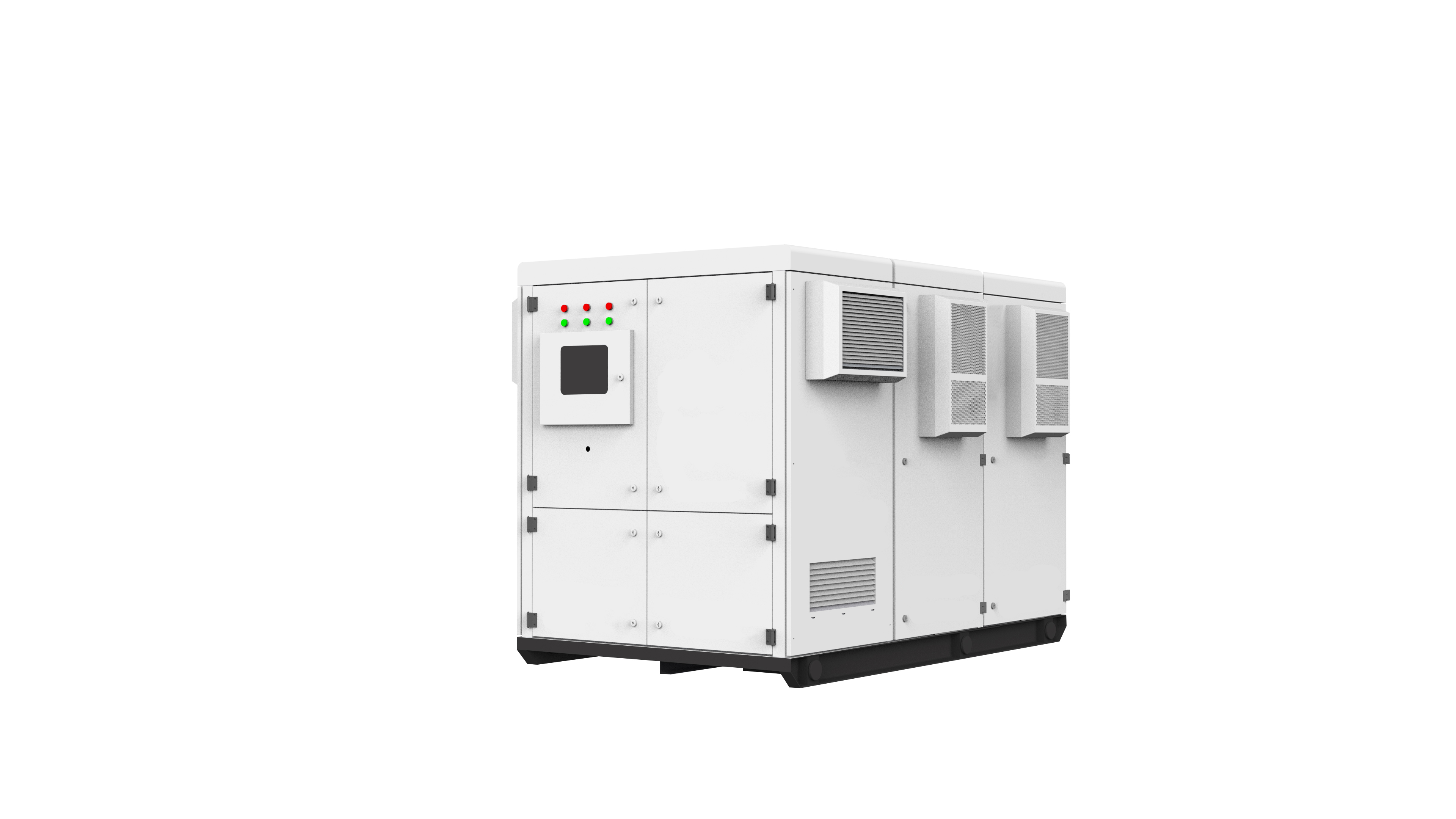

GRES 150-100
Σχετικά με το προϊόν
BESS σύστημα υψηλότερης ισχύος για εμπορικές και βιομηχανικές εφαρμογές.
- Rated output power: 100kW
- Rated current: 151A
- Battery system capacity: 153.6kWh
- Cell type: Lithium Iron Phosphate (LiFePO4)
- Communication: RS485, CAN, LAN
| Specification | GRES-75-50 | GRES-150-100 | GRES-225-150 |
|---|---|---|---|
| Rated output power (kW) | 50 | 100 | 150 |
| Rated current (A) | 75 | 151 | 227 |
| Rated voltage (V) | 3W+N+PE, 380 | ||
| Grid voltage range | -15% ~ +10% | ||
| Grid frequency (Hz) | 50/60 (range: ±2) | ||
| THDI | <3% (at rated power) | ||
| Power factor | >0.99 (adjustable ±1) | ||
| Off-grid overload | 105% | ||
| Cell type | Lithium Iron Phosphate (LiFePO4) | ||
| Battery pack capacity (kWh) | 5 | 10 | 15 |
| Battery system capacity (kWh) | 76.8 | 153.6 | 230.4 |
| Running time (h) | 1 (battery pack quantity adjustable) | ||
| Battery life span | 25C, 0.5C/0.5C, EOL80% ≥ 2000 cycles | ||
| On/off-grid switching | STS | ||
| Communication | RS485, CAN, LAN | Modbus-RTU, Modbus-TCP, CAN2.0B | ||
| Size (W x D x H) mm | 1300 x 1540 x 1600 | 1300 x 2300 x 1600 | 1300 x 3060 x 1600 |
